DNBSEQ-T20X2 Sequencer
The Sub-$100 Genome Is Here
DNBSEQ-T20X2 Sequencer
The Sub-$100 genome Is Here
Unparalleled Production-Level Sequencer
DNBSEQ-T20X2, an ultra high-throughput sequencer, achieves fully automated sequencing exclusively through integrated robotics. Our innovative robotics-based fluidics, utilizing whole-wafer-sized slides, ensure highly accurate base calling and robust copy number correction. Supporting up to six slides per run, it can generate up to 20Tb of high-quality data per day or 50,000 WGS yearly, making it the optimal choice for large population genome projects or OMICS technologies for healthcare.
Automated
Experience seamless NGS workflow from sample to results with our fully automated, robotic sequencer.
Scalable
Designed for large, complex projects, the T20X2 is perfect for high-volume service labs, population studies for 100k to 1M genomes, or large database projects.
Efficient
The T20X2 combines the highest density DNB nano-arrays with dip immersion technology to conserve precious reagents for exceptional cost-effectiveness.
See the T20X2 in Action

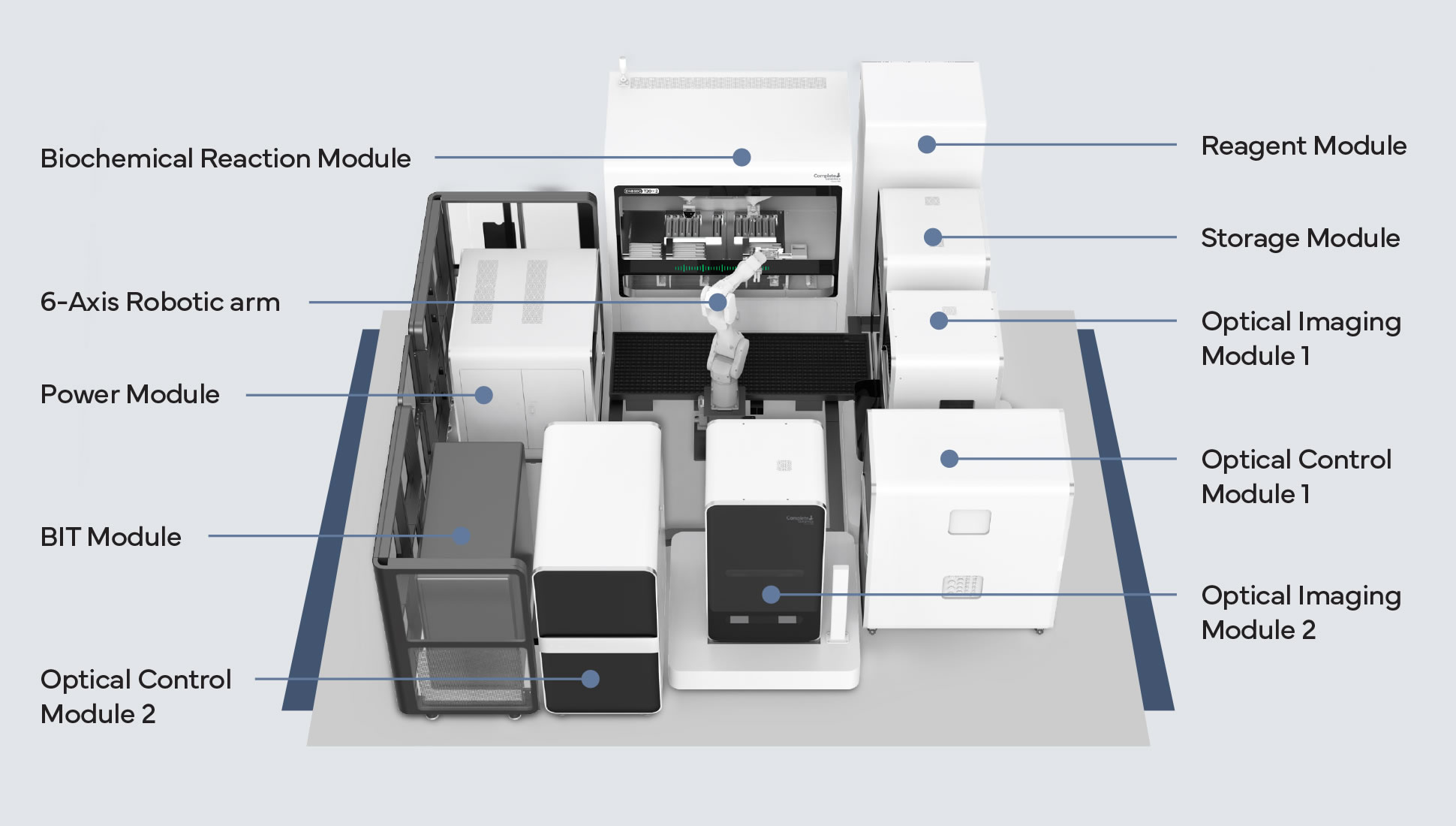

A Fully Automated Sequencing Platform
Performance Parameters
| Read Length | Reads/Slide | Data Output/Slide | Data Output/Run | Run Time* | Q30 |
|---|---|---|---|---|---|
| PE100 | 40B | 8 Tb | 48 Tb | <60 hrs | >85% |
| PE150 | 40B | 12 Tb | 72 Tb | <80 hr | >80% |
* Run time includes flow cell loading, sequencing, and data output in .cal file.
Specifications are based on Complete Genomics E. coli control library using Complete Genomics standard library preparation method. Actual performance may vary based on library type, library quality, insert size, and other experimental factors.
Dip-Immersion Biochemical Technology
Proprietary DNBSEQ™ Technology
Ultra-high throughput
The ultra-high-throughput of the T20x2 generates up to 72 Tb per run or 50,000 WGS per year.
It is the perfect option for large population studies or any large scale genome projects.
Creating a cost-saving scale
Adopting an innovative dip-immersion biochemical technology, you can consecutively immerse multiple sequencing slides in the same reagent container—enabling reagent reuse and creating a cost-saving scale that trailblazes the path to the sub $100 genome.
Your Data Security is Our Top Priority
All our sequencing platforms can work as standalone systems, from sample to result, without a network connection. As a result, there is no data breach risk, and you can be assured your data is secure.
Specifications
| Dimensions / Net Weight | Dimensions: | Biochemical Reaction Module: 68.9’’ x 148’’ x 78.7’’ DNBSEQ-T20x2: 165.4’’ x 189’’ x 78.7’’ |
| Net Weight: | 8157 lbs (without BIT module) | |
| Power | Type: | 3~, 380/400V, 50 Hz |
| Rated Power: | 20000 VA | |
| Operating Environment Requirements | Temperature: | 66.2°F – 71.6°F |
| Relative Humidity: | 30% RH ~ 70% RH | |
| Atmospheric Pressure: | 90 kPa-106 kPa | |
| Shipping/Storage Environment | Temperature: | 59°F ~ 86°F |
| Relative Humidity: | 30% RH ~ 70% RH | |
| Atmospheric Pressure: | 90 kPa-106 kPa |
A Complete Solution for Every Step of Your Workflow
Kits & Reagents
No matter your workflow, our kits are simple to use and easily integrated. We also offer conversion kits for 3rd party library prep.
Lab Automation
With solutions from sample extraction to lab automation you can spend less time overseeing equipment and pursue more useful activities.
